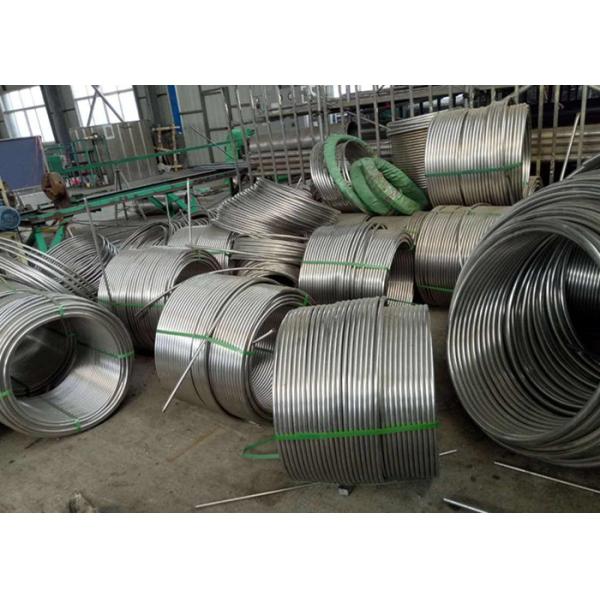

OD 10x1mm Cold Drawn Stainless Steel Tubing Coil Beer ASTM A269 TP304/304L
Spezilla offers stainless steel coiled tubing in sizes from 1/4 to 1 in. and wall thickness from 0.035 to 0.049 in. Our coiled tubing is available in lengths up to 2300 feet, which is up to 30% long than traditional offerings. In addition, Spezilla offers less than reel quantities of coiled tubing. Stainless steel tube straighteners make coiled tubing installation faster and easier.
Typical Manufacturing Specifications:
EN10217-7
ASTM A249
ASTM A269
Material: TP316L UNS S31603
OD: 2-3/8" or 2.375"
Chemistry Composition
C,% 0.035 max Mn,% 2.00 max P,% 0.045 max S,% 0.030 max Si,% 1.00 max Cr,% 16.0-18.0 Ni,% 10.0-14.0 Mo,% 2.00-3.00
Mechanical Properties
Tensile Strength: 70,000psi (483MPa) min
Yield Strength: 40,000psi (276MPa) min
Hardness: 192HBW, 200HV or 90HRB max
EN 10204 3.1 Certification
3.1 is a certificate on all our tubing issued by the mill which declares that the tubes are in compliance with the specification and includes the test results. Test results are validated by the mill’s in - house test department which has to be independent of the manufacturing department.
EC Pressure Equipment Directive 97/23/EC ( PED )
Tubes certified to 3.1 or 3.2 are in conformity with the EC Pressure Equipment Directive 97/23/EC for main pressure-bearing parts in categories II, III and IV.
Coiled Tubing undergo stringent inspection to maintain light tolerances as per ASTM accepted standards. MTC in accordance with EN10204 NACE 3.1 is furnished for all our customers against purchase order. The inner surface of tube is free from oil, gas and dust particles. The impeccable tube quality helps it for a high longevity in projects and instruments, thereby reducing costs
Coiled Tubing are manufactured in seamless and welded quality.
The stainless steel coil tubing is widely used for industrial applications such as heat exchanger, boiler, petroleum, chemical, fertilizer, chemical, pharmaceutical, nuclear power, etc. It is also used as fluid transport system such as beer, milk, water systems, medical equipment, etc. Its other applications include mechanical structure, printing and dyeing, textile machinery, medical equipment, kitchen equipment, automobile and ship accessories, building and decoration, etc.
Features & Advantages:
Seamless stainless steel coil tubing can reduce the cost of installation due to:
- Higher rate of materials utilization
- Fewer collections
- System integrity can be improved much.
- Improve the safety of the pipeline system.
| EN | ASTM | Item Name | Finish |
| 1.4404 | TP316L | 6.00 X 1.0 mm
TIG welded stainless steel coiled tubes, 1.4404, bright annealed, EN 10217-7 W2Rb | Bright Annealed |
| 1.4404 | TP316L | 8.00 X 1.0 mm
TIG welded stainless steel coiled tubes, 1.4404, bright annealed, EN 10217-7 W2Rb | Bright Anneaeld |
| 1.4404 | TP316L | 10.00 X 1.0 mm
TIG welded stainless steel coiled tubes, 1.4404, bright annealed, EN 10217-7 W2Rb | Bright Annealed |
| 1.4404 | TP316L | 12.0 X 1.0 mm
TIG welded stainless steel coiled tubes, 1.4404, bright annealed, EN 10217-7 W2Rb | Bright Annealed |
| 1.4404 | TP316L | 6.35 X 0.89 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 | Bright Annealed |
| 1.4404 | TP316L | 9.53 X 0.89 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 | Bright Annealed |
| 1.4404 | TP316L | 12.7 X 0.89 mm
TIG welded stainless steel coiled tubes, 1.4404, bright annealed, ASTM A249 A269 | Bright Annealed |
| 1.4404 | TP316L | 6.35 X 1.24 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 | Bright Annealed |
| 1.4404 | TP316L | 9.53 X 1.24 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 | Bright Annealed |
| 1.4404 | TP316L | 12.7 X 1.24 mm
TIG welded tstainless steel ubes, TP316L, bright annealed, ASTM A249 A269 | Bright Annealed |
| 1.4404 | TP316L | 6.3M X 1.65 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 | Bright Annealed |
| 1.4404 | TP316L | 9.53 X 1.65 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 | Bright Annealed |
| 1.4404 | TP316L | 12.7 X 1.65 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269 | Bright Annealed |
Description:
| Item Code: | SPW-C-304/304L |
| Tube OD.: | 6.00MM - 25.40MM |
| Wall: | 0.5MM - 1.65MM |
| Length: | 3000MM |
| Material: | 304/304L |
| Standard: | ASTM A249 |
| Finish: | Bright Annealed. |
| Type: | Welded & Coiled |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Wooden Boxed |
Chemical composition reference analysis (as weight %)
| Chemical | Amount % |
| | 304 | 304L |
| C | ≤ 0,08 | ≤ 0,035 |
| P | < 0,040 | < 0,040 |
| S | ≤ 0,030 | ≤ 0,030 |
| Si | ≤ 1,0 | ≤ 1,0 |
| Mn | ≤ 2,0 | ≤ 2,0 |
| Cr | 18.00 – 20.00 | 18 – 20 |
| Mo | N/A | N/A |
| Ni | 8.00 – 11.00 | 8.00 - 13.00 |
| N | | |
